Subharmonicon is inspired by Joseph Schillinger’s mathematical system for musical composition and is influenced by two analog innovations from the 1930s and 1940s: the Mixtur-Trautonium, which employed a series of subharmonic oscillators to generate electronic undertones, and the Rhythmicon (developed by Leon Theremin!), an instrument capable of sounding multiple harmonically related polyrhythm generators simultaneously.

The Mixtur-Trautonium created subharmonics by dividing the frequency of its primary oscillator, while the Rhythmicon created polyrhythms that were multiplications of its primary tempo. These concepts of subharmonics and polyrhythms form the historic roots of the Moog Subharmonicon.

The undertone series, or subharmonic series, results from the division of an initial fundamental frequency (f) by successive integer values (unlike the overtone series, which results from integer multiples of the fundamental frequency). Where overtones are found to occur naturally in acoustic sounds, undertones must be produced through more extreme or novel methods, such as electronic circuitry.

Polyrhythms employ multiple rhythms playing at once to create complex, interweaving phrases. In the same way that a subharmonic oscillator divides the fundamental frequency (f) to create a musically related subharmonic, each rhythm generator in Subharmonicon uses an integer value to divide the current tempo value (t) to create a new rhythm.

For further learning, read this story about the unique history behind Subharmonicon.

Music As Living Matter

• SOUND ENGINE:

  Analog

• SOURCES:

  VCO 1, SUB 1, SUB 2 / VCO 2, SUB 1, SUB 2

• FILTER:

  Self-Oscillating Ladder Filter, Low-Pass, 4-Pole (-24 dB/Octave)

• ENVELOPES:

  VCA EG (Attack, Decay); VCF EG (Attack, Decay)

• SEQUENCERS

  Analog (x2)

• STEPS:

  4 Steps per Sequencer, selectable Quantization

• CLOCK:

  Driven by any and all of the Rhythm Generators 4

• RHYTHM:

  Derived by dividing the Tempo by an integer value (1-16)

• CLOCK:

  20 BPM to 3,000 BPM (Beats per Minute; 1 Pulse per Quarter-note), MIDI Clock, EXT CLOCK

• PATCHBAY

  32 x 3.5mm jacks

• INPUTS:

  17 Input Jacks

• OUTPUTS:

  15 Output Jacks

• MIDI:

  3.5mm MIDI Input (Type A dongle included)

• REAR PANEL

  AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument POWER: Power supply connection SECURITY: Kensington lock slot

• WEIGHTS AND DIMENSIONS




• PRODUCT:

  Imperial (in.): 4.2h x 12.57w x 5.24d Metric (cm): 10.67h x 31.93w x 13.31d Weight: 3.5 lbs. Metric Weight: 1.58 kg

• SHIPPING:

  Imperial (in.): 8h x 15w x 9d Metric (cm): 20.32h x 38.1w x 22.86d Imperial Weight: 6 lbs Metric Weight: 2.72 kg

• POWER SUPPLY (INCLUDED)

  STYLE: Wall adapter; barrel connection; center-pin positive INPUT: 100 – 240VAC; 50 Hz – 60 Hz OUTPUT: +12VDC; 1200mA

• POWER CONSUMPTION

  TYPICAL: 4.8 Watts

• EURORACK SPECS

  CURRENT DRAW: 360mA (maximum) from +12VDC (10-pin header) MOUNTING DIMS: 60HP (1” / 26mm Module Depth

• ACCESSORIES

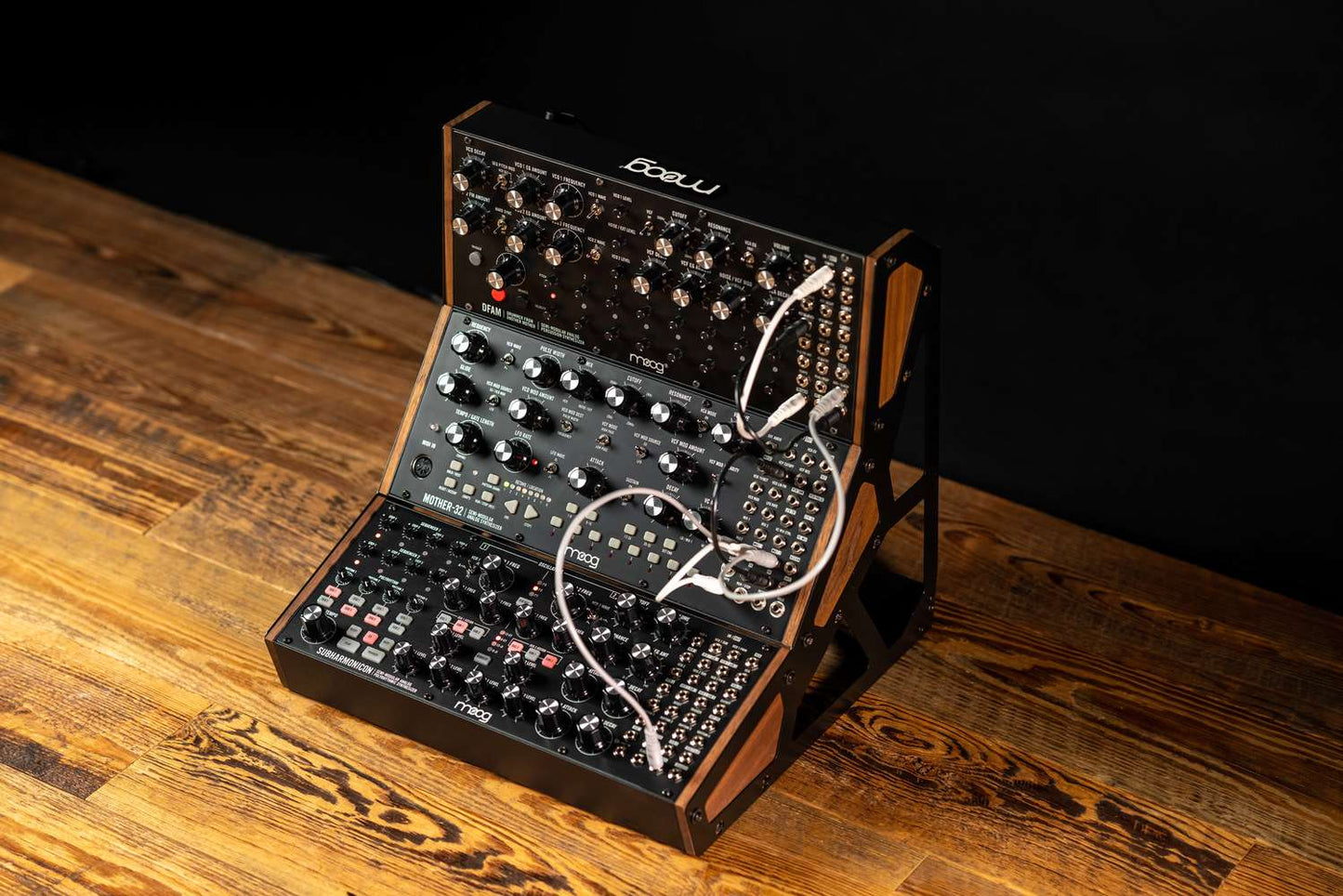

  2-TIER VERTICAL RACK KIT 3-TIER VERTICAL RACK KIT GIG BAG 6” 3.5 mm CABLE PACK (QTY 5) 12” 3.5 mm CABLE PACK (QTY 5) EMPTY 60HP CASE EMPTY 104HP CASE
