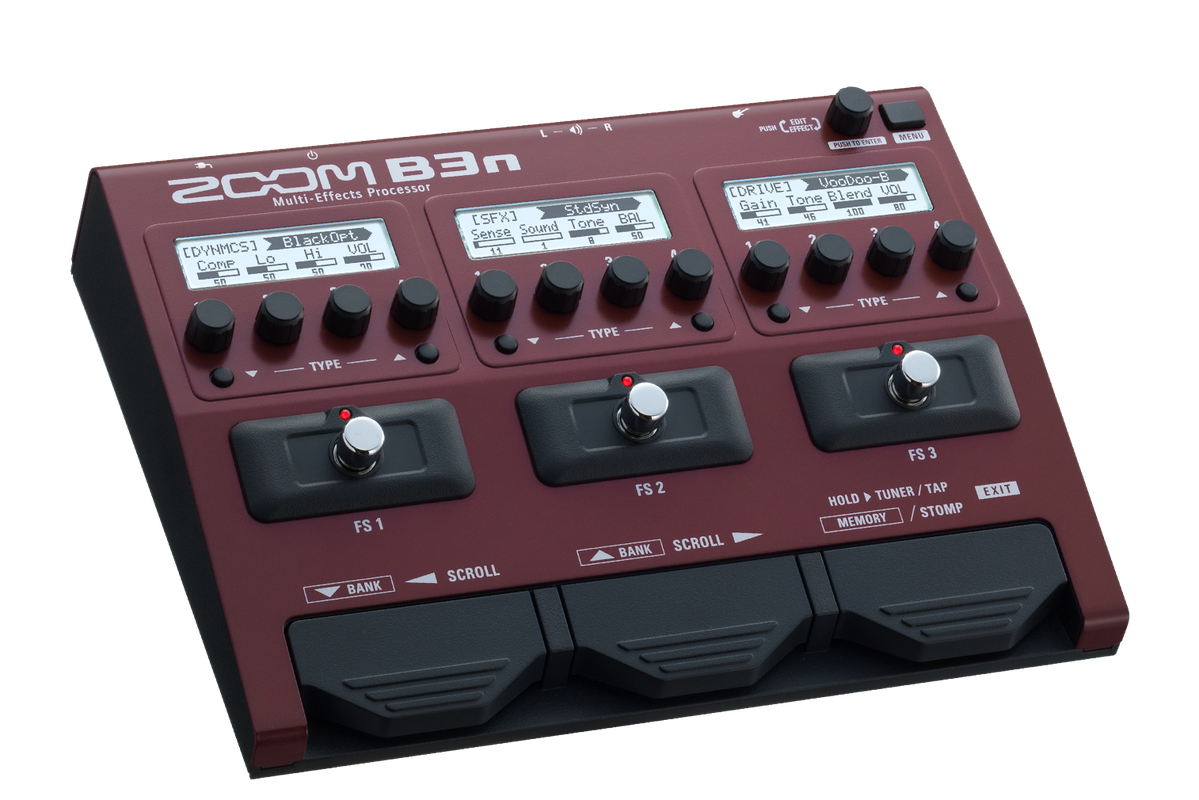

Zoom B3n Intuitive Multi-Effects Processor for Bassists
Zoom B3n Intuitive Multi-Effects Processor for Bassists
Couldn't load pickup availability
Zoom B3n
AUTHENTIC SOUNDS. COMPLETE VERSATILITY.
Bass Multi-Effects Processor
Intuitive Multi-Effects Processor for Bassists
The Zoom B3n lets you create your own original sound, no matter the kind of music you play. This bass pedal has countless amp, cabinet, and stompbox effects that you can use on stage or in the studio. Plus, its editing features are simple enough that you can tweak your sound even when you're on the road.
Intuitive Multi-Effects Processor for Bassists
Key Features
- 67 high-quality stompbox DSP effects
- 5 amp emulators plus 5 cabinet emulators
- Free ZOOM Guitar Lab Mac/Windows software allows for
downloading of additional effects and patch management - Use up to 7 effects simultaneously, chained together
in any order - 3 stompbox switches allow effects to instantly be brought
in and out - Intuitive user interface with 3 independent editing displays
- Onboard chromatic tuner with dedicated footswitch supports
all standard bass tunings, including open and drop tunings
(tuner range of 435 - 445 Hz) - Stereo/mono looper allows recording of up to 80 seconds
of phrase recording - 68 built-in rhythm patterns that can be used in conjunction
with the looper - Tap Tempo with dedicated footswitch
- Auxiliary stereo input jack for connection of smartphones
and music players - Dual output jacks for connection to bass amps and mono
or stereo PA systems - Dedicated stereo headphone output
- Control input for ZOOM FP02M external expression pedal
Specs
Specs
| EFFECT TYPES: | 67 |
| NUMBER OF SIMULTANEOUS EFFECTS : | 7 |
| NUMBER OF USER BANKS/PATCHES: | 150 |
| SAMPLING FREQUENCY: | 44.1 kHz |
| A/D CONVERSION: | 24-bit with 128x oversampling |
| D/A CONVERSION : | 24-bit with 128x oversampling |
| SIGNAL PROCESSING : | 32-bit |
| FREQUENCY CHARACTERISTICS : | 20 – 20 kHz +1 dB, -3 dB (10 kΩ load) |
| DISPLAY: | 128 x 32 dot-matrix LCD (x3) |
INPUTS
| INPUTS: | Standard monaural phone jack Rated input level: -20 dBu* Input impedance (line): 470 kΩ |
| AUX IN | Stereo mini jack (3.5 mm) Rated input level: -10 dBu* Input impedance (line) : 10 kΩ |
OUTPUTS
| OUTPUT R | Standard monaural phone jack |
| MAXIMUM OUTPUT LEVEL | Line +5 dBm* (with output load impedance of 10 kΩ or more) |
| L/MONO/PHONE | Standard stereo phone jack (combined line/headphone) |
| MAXIMUM OUTPUT LEVEL | Line +5 dBm (with output load impedance of 10 kΩ or more) Headphones 15 mW + 15 mW (into 32 Ω load) |
| EQUIVALENT INPUT NOISE | -119 dBu |
| NOISE FLOOR (RESIDUAL NOISE) | -100 dBu |
| CONTROL INPUT | Zoom FP02M |
| POWER | AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16) |
| USB | USB MIDI USB Micro-B |
| DIMENSIONS | 181 mm (D) X 234 mm (W) X 58 mm (H) 7.1 in (D) X 9.2 in (W) X 2.2 in (H) |
| WEIGHT | 1.28 kg / 2.8 lbs |
| OPTIONS | FP02M expression pedal * 0 dBm=0.775 Vrms |
67 Built-In Stompbox Effects for Monster Tone
The B3n is pre-loaded with 67 high-quality stompbox DSP effects, including 19 dynamics and filter effects, 15 overdrive and distortion effects, 17 modulation effects, 11 delay and reverb effects and more.
NOTE: Manufacturer names and product names are trademarks or registered trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation or Zoom North America.
Faithful Bass Amp and Cabinet Emulations
The B3n’s newly created emulations include five classic bass amps and five matching cabinets that have been modeled to sound and respond like the real thing. To adjust the sound of each model, simply use the B3n’s parameter knobs just as you would with analog gear. You can also download even more amp/cabinet combinations via ZOOM Guitar Lab software.
Create Custom Effects Chains
Chain up to seven effects, amps, and cabinets together simultaneously in any order you like to experiment with and create new sounds. You can also store up to 150 of your custom effects chains as patches.

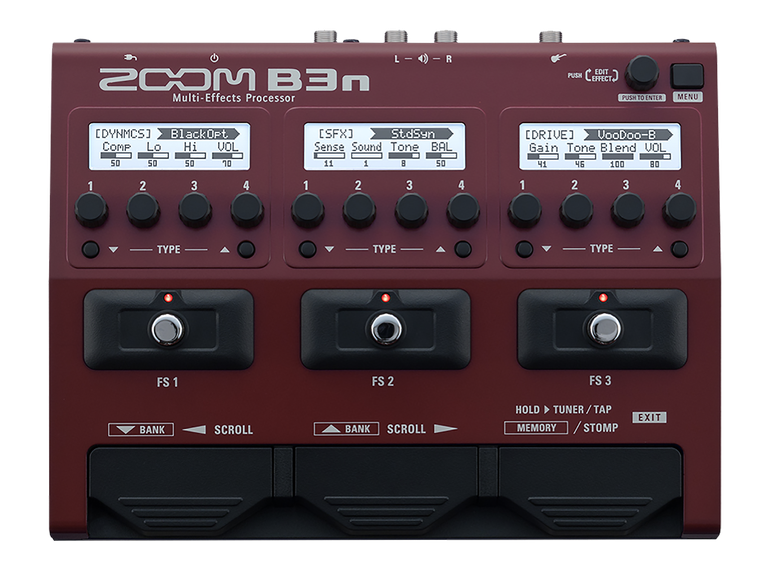

Master Your Sound
The B3n’s simple layout and controls make for faster and more intuitive editing. Its three independent LCD screens display your entire effects chain at a glance, and its tactile knobs
and switches give you effortless control over adding, editing, deleting, or changing the order of effects.
FEATURED: Stu Hamm, ZOOM Creator - B3n Patches
Just Plug It In and Play
There’s no complex setup with the B3n—just plug in and start playing. Thanks to its 68 built-in rhythm patterns, the B3n is great for both practice and solo performances. With the onboard looper, you can record and overdub phrases up to 80 seconds long, creating textured
layers of sounds using the effects of your choice. The looper, rhythm patterns, and delay effects can all be synchronized using a tap tempo function. And a built-in chromatic tuner lets you bypass the currently selected patch while tuning, or mute the signal altogether.

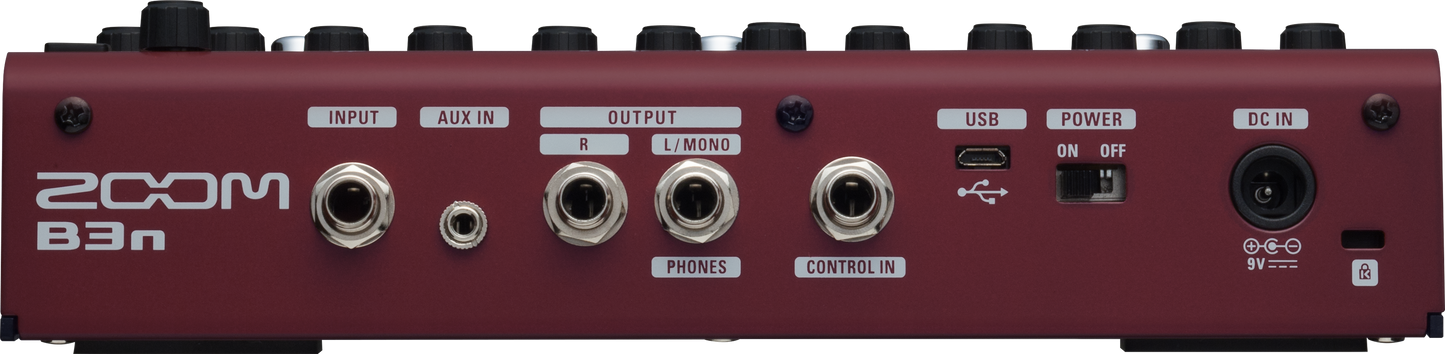

Connect, Perform, and Record
It’s easy to integrate the B3n into any live performance or studio rig. In addition to a standard 1/4” input, there's an auxiliary 1/8” stereo input for connecting smartphones or music players. There’s also a dedicated headphone jack for practice, and dual outputs for mono or stereo L/R connection to bass amps, PA systems, and audio interfaces. Add the ZOOM FP02M expression pedal via the dedicated control input for real-time control over effects parameters.

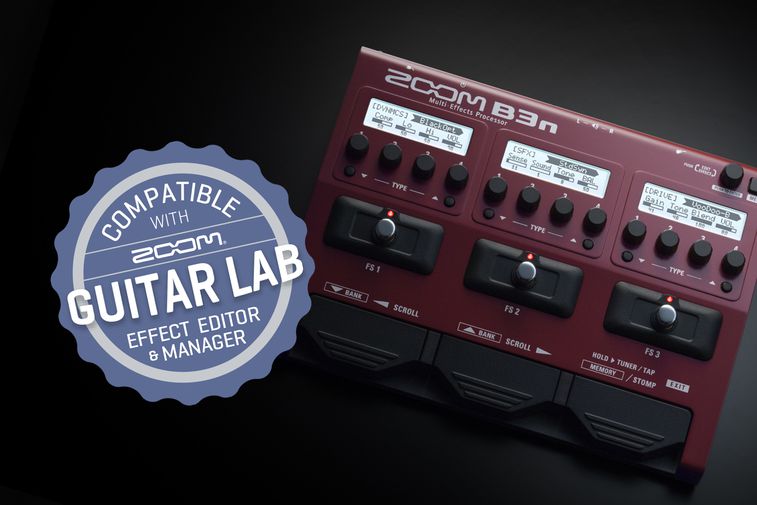

ZOOM Guitar Lab Software
With Guitar Lab for Mac/Windows, you have access to Zoom’s library of amp models, effects and patches. A one-stop shop for effects management, users can easily edit effect parameters, build effect chains, and backup/organize their patches. Guitar Lab 3.0’s advanced UI monitors your CPU usage while you edit for maximum efficiency. For user convenience, the new Clipboard function memorizes up to four effects with custom parameters, so you can copy and paste them onto other patches. Finally, the NEWS section contains newly added effects and patches, as well as demo sounds, all available for download directly from the app.
